Step-up vs step-down transformers — differences, uses & selection

How Transformers Change Voltage

A transformer is a static electrical device that transfers energy from one circuit to another through electromagnetic induction. It has no moving parts, no motor, no generator — just two (or more) coils of wire wound around a shared iron core. Yet this simple arrangement is the reason electricity can travel hundreds of kilometres from a power station to your factory without losing most of its energy as heat along the way.

The Principle of Electromagnetic Induction

When alternating current (AC) flows through the first coil — called the primary winding — it creates a changing magnetic field in the iron core. This changing magnetic field passes through the second coil — called the secondary winding — and induces a voltage across it. The process is called electromagnetic induction, and it was discovered by Michael Faraday in 1831. Every transformer in every grid, factory and neighbourhood in Pakistan operates on this same principle today.

The key insight is this: the voltage induced in the secondary winding depends on the ratio of turns (loops of wire) between the two windings. This ratio — called the turns ratio — is what determines whether a transformer steps voltage up or steps it down.

The Turns Ratio

The turns ratio is expressed as the number of turns on the primary winding (Np) compared to the number of turns on the secondary winding (Ns). The relationship is straightforward:

• Voltage ratio equals turns ratio: Vs / Vp = Ns / Np
• If the secondary has more turns than the primary, the secondary voltage is higher than the primary voltage — this is a step-up transformer
• If the secondary has fewer turns than the primary, the secondary voltage is lower than the primary voltage — this is a step-down transformer

For example, if the primary winding has 100 turns and the secondary has 1,000 turns, the turns ratio is 1:10. A 400V input on the primary would produce 4,000V on the secondary — a step-up of 10 times. Reverse the connection (feed 4,000V into the 1,000-turn winding) and you get 400V out of the 100-turn winding — a step-down.

It is important to understand that a transformer does not create energy. When voltage goes up, current goes down proportionally, and vice versa. The total power (voltage multiplied by current) remains essentially the same on both sides, minus small losses due to resistance in the windings and magnetisation of the core.

What Is a Step-Up Transformer?

A step-up transformer increases voltage from the primary winding to the secondary winding. The secondary winding has more turns of wire than the primary winding, giving it a turns ratio greater than 1 (when expressed as Ns/Np). As the voltage increases, the current decreases proportionally — the power remains essentially constant.

How It Works

In a step-up transformer, the primary winding (connected to the power source) uses thicker wire with fewer turns because it carries higher current at lower voltage. The secondary winding uses thinner wire with more turns because it carries lower current at higher voltage. The iron core links both windings magnetically, transferring energy from one to the other with high efficiency — typically 95% to 99% depending on size and design.

Where Step-Up Transformers Are Used

• Power generation stations: Generators at thermal, hydro and nuclear plants typically produce electricity at 11kV to 25kV. Step-up transformers at the plant increase this to 220kV or 500kV for long-distance transmission. Without this voltage increase, the enormous currents required would demand impractically thick transmission lines and cause massive energy losses
• Transmission substations: At intermediate points in the grid, step-up transformers may further increase voltage for longer transmission distances — for example, from 220kV to 500kV
• Distributed generation: Factories or solar farms that generate their own power and feed excess back into the grid use step-up transformers to match the grid voltage level
• Industrial processes: Certain specialised equipment — such as X-ray machines, electrostatic precipitators, and high-voltage testing equipment — requires voltages higher than the standard supply, necessitating step-up transformers

In Pakistan, the most significant step-up transformers are found at power generation facilities run by WAPDA, GENCO, and independent power producers (IPPs). These massive units — often rated at hundreds of MVA — step generator output up to 220kV or 500kV for feeding into the national transmission network managed by NTDC (National Transmission and Despatch Company).

What Is a Step-Down Transformer?

A step-down transformer decreases voltage from the primary winding to the secondary winding. The secondary winding has fewer turns of wire than the primary winding, giving it a turns ratio less than 1 (Ns/Np < 1). As the voltage decreases, the current increases proportionally to maintain the same power level.

How It Works

In a step-down transformer, the primary winding (connected to the high-voltage supply) uses thinner wire with many turns because it carries lower current at higher voltage. The secondary winding uses thicker wire with fewer turns because it carries higher current at lower voltage. The thicker secondary conductor is necessary to handle the increased current without overheating.

The Most Common Type in Pakistan

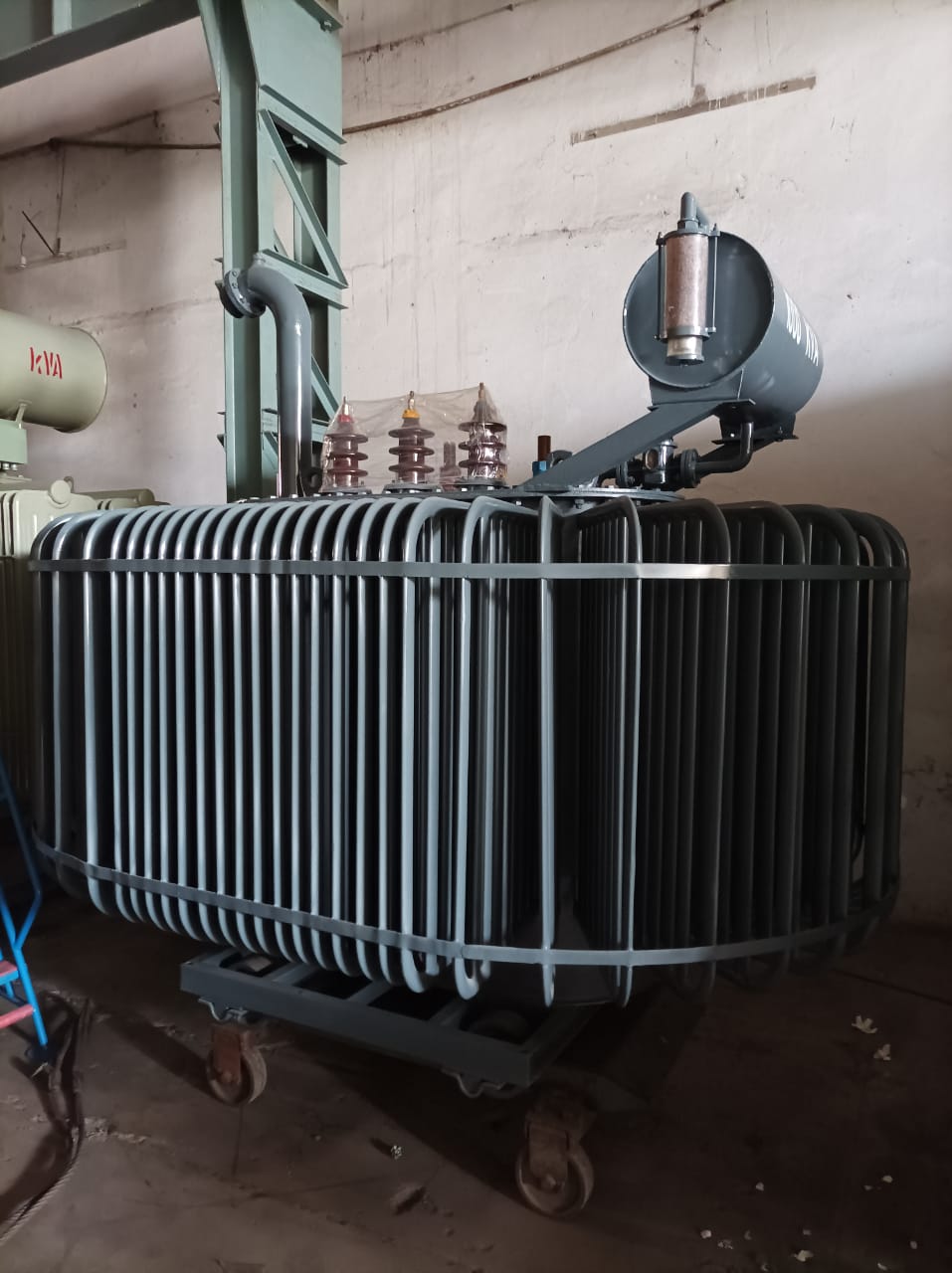

Step-down transformers are by far the most common type in Pakistan's electrical system. Every time electricity moves closer to the end user, a step-down transformer reduces the voltage to an appropriate level. The distribution transformers you see mounted on poles throughout cities and villages, and the pad-mounted units outside factories and commercial buildings, are all step-down transformers.

The most common voltage transformations in Pakistan's distribution system include:

• 33kV to 11kV — at secondary distribution substations, serving as the link between sub-transmission and local distribution networks
• 11kV to 400V — the most common transformation in Pakistan. This is the transformer that serves factories, commercial complexes, housing schemes and agricultural tube wells. If you are a factory owner, this is almost certainly the type you deal with
• 11kV to 230V — single-phase connections for smaller commercial and residential consumers, typically through pole-mounted transformers of 25 KVA to 200 KVA

When someone in Pakistan says they need to buy a transformer, they are almost always referring to a step-down transformer — specifically an 11kV to 400V distribution transformer in a standard KVA rating like 100, 200, 400, 630, 1000, or 2000 KVA.

Key Differences — Side by Side

The following table summarises the key differences between step-up and step-down transformers across the factors that matter most for selection and application:

It is worth noting that electrically, both types are fundamentally the same device — a pair of windings on a shared core. The distinction between step-up and step-down is about how the transformer is connected and used, not about any inherent structural difference. That said, the engineering design (insulation class, winding arrangement, bushing ratings, cooling capacity) is optimised for the intended direction of operation.

Applications in Pakistan

To understand where step-up and step-down transformers fit in the real world, it helps to trace the journey of electricity through Pakistan's power system from generation to consumption. Each stage involves a transformer changing the voltage level — either up or down — depending on whether power is being transmitted over long distances or delivered to end users.

The Voltage Chain in Pakistan's Grid

Pakistan's power system follows a standard voltage hierarchy, managed by different entities at each level:

1. Generation (11kV–25kV): Power plants — whether thermal (gas, furnace oil, coal), hydro (Tarbela, Mangla, Ghazi Barotha), nuclear (KANUPP, CHASNUPP), or solar/wind — generate electricity at 11kV to 25kV. A step-up transformer at the plant raises this to transmission voltage
2. Transmission (500kV and 220kV): NTDC operates the national transmission grid. Power travels across Pakistan on 500kV and 220kV lines — step-up transformers at the generation end make this possible. At receiving-end grid stations, step-down transformers reduce 500kV to 220kV or 220kV to 132kV
3. Sub-transmission (132kV): Regional grid stations operated by DISCOs (Distribution Companies like LESCO, FESCO, IESCO, MEPCO, PESCO, etc.) receive power at 132kV. Step-down transformers reduce this to 33kV or 11kV for local distribution
4. Primary distribution (33kV): In areas with heavy industrial loads, 33kV feeders carry power from grid stations to local substations. Step-down transformers reduce 33kV to 11kV
5. Secondary distribution (11kV): The 11kV network is the backbone of local electricity distribution across Pakistan. The familiar green or grey transformers on poles and pads are step-down units converting 11kV to 400V (three-phase) or 230V (single-phase)
6. Consumer level (400V / 230V): Factories receive three-phase 400V supply. Residential consumers receive single-phase 230V. Some large industrial consumers receive power directly at 11kV or 33kV and install their own step-down transformer on their premises

In this entire chain, step-up transformers appear only once — at the very beginning, at the power generation plant. Every subsequent transformation is a step-down. This is why step-down transformers vastly outnumber step-up transformers across Pakistan.

Factory Connections

Most factories in Pakistan with sanctioned loads above 50 kW receive an 11kV connection from their local DISCO. The factory installs its own step-down transformer (typically 200 KVA to 2000 KVA) to convert 11kV to 400V for machinery, motors, compressors, and other equipment. Larger industrial consumers — cement plants, steel mills, textile composites — may receive 33kV or even 132kV and use multiple step-down transformers in series to reach the 400V level their equipment needs.

If you are setting up or expanding a factory, you will almost certainly need a step-down transformer. The KVA rating you need depends on your total connected load, demand factor, and any future expansion plans.

Generators and Step-Up Applications

Some industrial facilities in Pakistan operate their own diesel or gas generators as backup or primary power sources. If these generators produce power at a voltage lower than the facility's distribution voltage, a step-up transformer is needed. For example, a generator producing 400V output that needs to feed into an 11kV busbar requires a step-up transformer.

Similarly, captive power plants in large industrial groups and independent power producers (IPPs) use step-up transformers to inject power into the national grid at the required transmission voltage. Solar farms and wind power installations also use step-up transformers to feed their generated power into the grid at 11kV, 33kV, or 132kV, depending on the scale of the installation and the point of interconnection.

How to Identify Which Type You Need

Determining whether you need a step-up or step-down transformer is straightforward once you know two things: the voltage of your incoming power supply and the voltage your equipment requires. The relationship between these two numbers tells you exactly which type you need.

Step 1: Check Your Incoming Supply Voltage

Your incoming voltage is determined by your connection type from WAPDA or your local DISCO. Common incoming voltages in Pakistan include:

• 230V single-phase — residential and small commercial connections
• 400V three-phase — small commercial and light industrial (LT connection)
• 11kV three-phase — standard industrial and large commercial connections (HT connection)
• 33kV three-phase — large industrial connections
• 132kV three-phase — very large industrial consumers (steel, cement, etc.)

Your DISCO sanction letter or electricity bill will indicate your connection voltage. If you are unsure, call your DISCO or contact TransfoLine — we can help you determine your supply parameters.

Step 2: Check Your Equipment Voltage

Look at the nameplate of your machinery, motors, and other electrical equipment. In Pakistan, most industrial equipment operates at:

• 400V three-phase — motors, compressors, pumps, CNC machines, welding equipment
• 230V single-phase — lighting, small appliances, control circuits
• Higher voltages (3.3kV, 6.6kV, 11kV) — large motors in cement plants, steel mills, and heavy industry

Step 3: Compare and Decide

• If your supply voltage is higher than your equipment voltage, you need a step-down transformer. Example: 11kV supply, 400V equipment — step-down needed
• If your supply voltage is lower than your required voltage, you need a step-up transformer. Example: 400V generator output, 11kV grid injection — step-up needed
• If your supply voltage matches your equipment voltage, you may not need a transformer at all — though you may still benefit from an isolation transformer for power quality and protection purposes

The Reality for Most Pakistan Factories

The overwhelming majority of factory owners and industrial consumers in Pakistan need a step-down transformer. The typical scenario is an 11kV connection from LESCO, FESCO, MEPCO, or another DISCO, stepped down to 400V for three-phase machinery. The transformer you need is a standard distribution transformer rated at the appropriate KVA for your load.

If you are unsure about the right transformer type or KVA rating for your facility, the engineering team at TransfoLine can assess your requirements and recommend the correct unit. With 18 years of experience supplying transformers to factories across Pakistan, we have seen every possible configuration and can guide you through the selection process efficiently.

Single Phase vs Three Phase

Both step-up and step-down transformers are available in single-phase and three-phase configurations. The choice between them depends on the nature of your electrical load and the type of supply available.

Single-Phase Transformers

A single-phase transformer has one primary winding and one secondary winding. It operates on a single-phase AC supply (two wires — line and neutral). Single-phase transformers are typically used for:

• Residential connections (25 KVA to 100 KVA pole-mounted units)
• Small commercial establishments — shops, clinics, small offices
• Rural electrification where loads are light and distances are long
• Specialised equipment that requires single-phase supply at a different voltage

In Pakistan, single-phase pole-mounted transformers (typically 25 KVA, 50 KVA, or 100 KVA) are a common sight in residential areas and villages. They step 11kV down to 230V for household consumers.

Three-Phase Transformers

A three-phase transformer has three sets of primary and secondary windings, either wound on a common three-limbed core (most common) or assembled from three single-phase units (bank configuration). Three-phase transformers dominate industrial applications because:

• Higher power density: A three-phase transformer delivers the same power as three single-phase units but uses less core material, less copper, less oil, and a smaller tank — making it more compact and efficient
• Better for motors: Industrial motors — the largest electrical load in most factories — are overwhelmingly three-phase. Running them from a three-phase transformer supply is more efficient and produces smoother torque
• Grid compatibility: Pakistan's 11kV distribution network is three-phase. Connecting to it with a three-phase transformer is the natural and most efficient configuration
• Balanced loading: Three-phase systems inherently balance the load across the grid, reducing neutral currents and improving overall system efficiency

For industrial applications in Pakistan, three-phase step-down transformers in the 200 KVA to 3000 KVA range are the standard. If you are setting up a factory, expanding production, or replacing a failed unit, a three-phase transformer is almost certainly what you need. The winding configuration (delta-star, star-star, or delta-delta) will depend on your specific supply and load requirements.

Can You Use Single-Phase Transformers for Three-Phase Loads?

Yes — three single-phase transformers can be connected in a bank configuration (delta-delta, delta-star, or star-star) to serve a three-phase load. This approach is sometimes used when a single large three-phase transformer is not available, when transport access is limited (three smaller units are easier to move than one large one), or when you want redundancy (if one fails, the other two can continue serving a reduced load in an open-delta configuration). However, a single three-phase transformer is generally preferred for efficiency, cost, and space reasons.

Frequently Asked Questions

What is the main difference between a step-up and step-down transformer?

A step-up transformer increases voltage from primary to secondary winding, while a step-down transformer decreases voltage. The difference is determined by the turns ratio — if the secondary winding has more turns than the primary, voltage goes up (step-up). If the secondary has fewer turns, voltage goes down (step-down). Both types work on the same principle of electromagnetic induction and are essentially the same device connected differently.

Can one transformer work as both step-up and step-down?

In principle, yes. The same transformer can function as either step-up or step-down depending on which winding you connect to the supply. If you feed power into the low-voltage winding, it acts as a step-up transformer. If you feed power into the high-voltage winding, it acts as a step-down transformer. However, transformers are designed, insulated, and rated for a specific direction of operation. Reversing the intended power flow without proper engineering review can compromise insulation, protection coordination, and cooling adequacy. Always consult a qualified engineer before attempting to use a transformer in the reverse direction.

Which type of transformer is more common in Pakistan?

Step-down transformers are overwhelmingly more common. Pakistan's entire electricity distribution network — from 132kV grid stations down to the 400V supply at your factory — relies on step-down transformers at every stage. Step-up transformers are found only at power generation plants where they increase generator output voltage for long-distance transmission. For every step-up transformer in Pakistan, there are thousands of step-down units serving factories, commercial buildings, and residential areas.

What turns ratio does a step-down transformer have?

A step-down transformer has a secondary-to-primary turns ratio less than 1 (Ns/Np < 1). For example, an 11kV to 400V distribution transformer — the most common type in Pakistan's industrial sector — has a turns ratio of approximately 1:27.5, meaning the primary (high-voltage) winding has about 27.5 times more turns than the secondary (low-voltage) winding. The exact ratio may vary slightly depending on the tap position selected.

Do I need a step-up or step-down transformer for my factory?

Most factories in Pakistan need a step-down transformer. Your WAPDA or DISCO connection delivers power at 11kV (or sometimes 33kV for larger loads), and your machinery operates at 400V three-phase. A step-down transformer reduces the incoming high voltage to the 400V level your equipment requires. You would only need a step-up transformer if you are generating power (from a diesel generator, gas engine, or solar system) at a lower voltage and need to feed it into a higher-voltage network. If you are unsure, contact TransfoLine and our engineers will assess your requirements.

Why are step-up transformers used at power stations?

Power stations use step-up transformers because transmitting electricity at high voltage is far more efficient than transmitting at low voltage. When voltage increases, current decreases proportionally for the same power level. Lower current means less energy lost as heat in the transmission lines (losses are proportional to current squared), and it allows the use of thinner, lighter, less expensive conductors. A generator producing 500 MW at 22kV would require enormously thick cables to carry the current. Stepping up to 500kV reduces the current by a factor of approximately 23, making long-distance transmission practical and economical.
